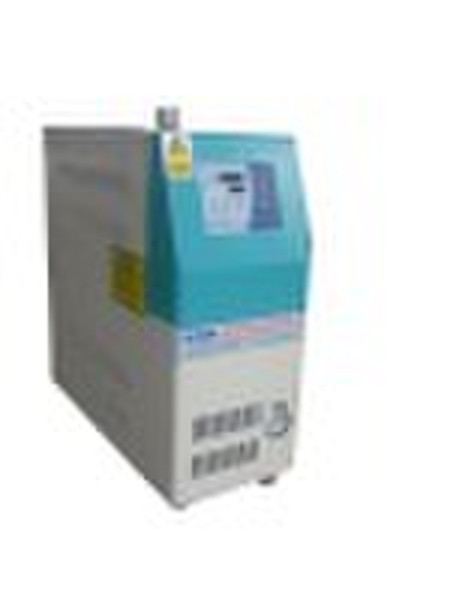

Oil-type Mold Temperature Controller

Mold Temperature Controller Feature 1.Geared up for high-precision molding. (1).Monitors temperature with 0.1 c accuracy and 0.5 C precision. (2).Provides measuring range of 0.1% 1 digit. (3).Attains 0.25sec of sampling cycle. (4).New control algorithm to reduce transient overshoot. 2.Machine maintenance made easier. (1).SSR(non-contact relay)of heater control circuit to achieve more than 10 years of lifetime. (2).4P pump to offer a longer lifetime. (3).Corrosion-resistant piping system to prevent rusting and scaling. 3.Reduces heater on time by 8%. *120 degree setting when using water (1).Higher control precision to improve operational effciency. (2).Heater pump sizes optiized for better performance and less energy consumption.(Heat exchange effectiveness,mwhich depends on themold size in use,is not necessarilly maximized by heater pump capacities.Bigger heater pump consume more electric power,and may inctease utility costs.) 4.Automated control offers safer operational environment. (1).Non-fuse breaker with open-circuit voltage capability to secure safe operation environment. (2).SSR for heater control to achiebe more than 10 yeats of lifetime(compared to contactor's average lifetime of 1 year). Speifications Model KY-6KY-9KY-12KY-24KY-36 MediumHeatingmediumoilTemperatureMax.160°C/250°COverheatprotectionsettemp170°C/270°CControlmethodPLD,PIDcontrolHeatedcapacity(KW)6 9122436 PumpMotorcapacity(KW)0.75 0.751.12.23 Max.pressure(Kpa)335 335400420450 Max.flow(Lr/min)100 100120200250 distention oiltankFullcapacity(Lr)10 12153050 Heatingmediumoildosage(Lr)22 25306080 Coolingcapacity(Kcal)IndirectcoolingmethedCOOLEXcoefficientofflow(CV)0.31 0.540.80.850.95 PipediamCirculationsysterm8Ax2x25A 10Ax2x25A10Ax4x25A20A20A Coolingsysterm10APowersourceAC380V/50Hz3P+E(5m)DimensionLxWxH490x275x700 1080x350x850650x275x700 1080x350x850820x275x700 1080x350x850920x375x700 1180x450x850920x375x700 1180x450x850Weight(Kg)40/75 70/8080/9090/100100/110
