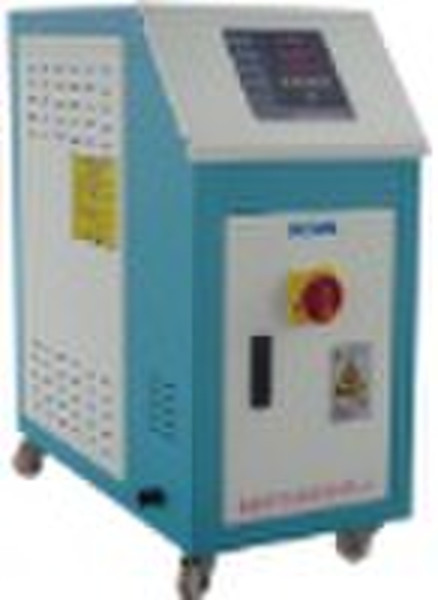

Water-Type Mold Temperature Controller

Mold Temperature Controller Feature 1.Geared up for high-precision molding. (1).Monitors temperature with 0.1 c accuracy and 0.5 C precision. (2).Provides measuring range of 0.1% 1 digit. (3).Attains 0.25sec of sampling cycle. (4).New control algorithm to reduce transient overshoot. 2.Machine maintenance made easier. (1).SSR(non-contact relay)of heater control circuit to achieve more than 10 years of lifetime. (2).4P pump to offer a longer lifetime. (3).Corrosion-resistant piping system to prevent rusting and scaling. 3.Reduces heater on time by 8%. *120 degree setting when using water (1).Higher control precision to improve operational effciency. (2).Heater pump sizes optiized for better performance and less energy consumption.(Heat exchange effectiveness,mwhich depends on themold size in use,is not necessarilly maximized by heater pump capacities.Bigger heater pump consume more electric power,and may inctease utility costs.) 4.Automated control offers safer operational environment. (1).Non-fuse breaker with open-circuit voltage capability to secure safe operation environment. (2).SSR for heater control to achiebe more than 10 yeats of lifetime(compared to contactor's average lifetime of 1 year). Speifications Model KS-3KS-6KS-9KY-12KS-18KS-24 MediumwaterTemperatureMax.90°C/120°C 90°C Overheatprotectionsettemp122°CControlmethodPIDfunctionHeatedcapacity(KW)3 69129X212X2 PumpMotorcapacity(KW)0.37 0.750.751.11.552.2 Max.pressure(Kpa)350 335335400300280 Max.flow(Lr/min)40 100100120223366 Coolingcapacity(Kcal)DirectcoolingCoolingcapacity(Kcal)2000/2000 6300/63009300/930013000/130006760067600 PipediamCirculationsysterm8Ax2direction 10Ax2 direction10Ax4 direction10Ax4 direction32A50A Coolingsysterm10A 15A20A20A PowersourceAC380V/50Hz3P+E(5m)DimensionLxWxH530x235x430570x235x635720x235x635870x300x7001055x400x9301055x400x930Weight(Kg) 30/735 60/65 70/75110160180
